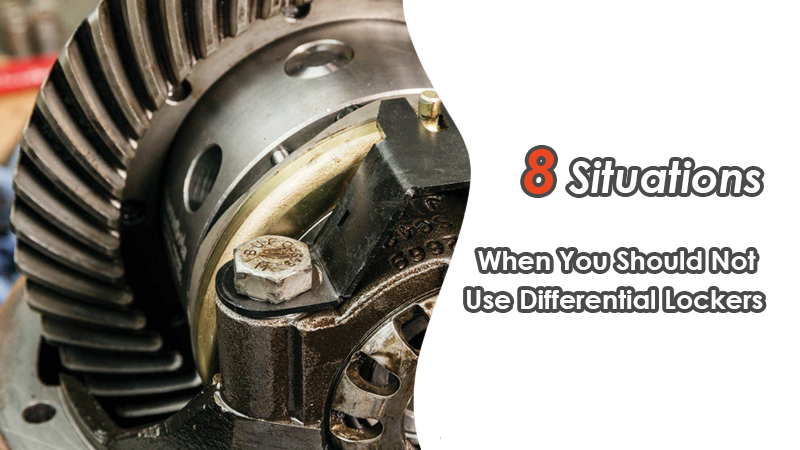

Differential lockers are powerful tools in off-road driving, but they must be used correctly to avoid damage and ensure safety. Inappropriate usage can cause severe mechanical failures or compromise control. This article dives deep into eight specific scenarios where differential lockers should not be used—and explains how to use them effectively when needed.
1. High Stress and High Load Situations at Speed
Momentum is critical when off-roading, but excessive speed combined with heavy load while lockers are engaged puts extreme stress on your driveline. This almost always leads to mechanical failure—such as snapping axles or damaged gears—sooner or later. While you might not see immediate damage, prolonged misuse will cause catastrophic breakdown.
2. Towing Uphill Under Load on Steep Inclines
Engaging lockers while towing a heavy load uphill drastically increases torque stress on axles. This often causes axle breakage, cutting trips short and leading to costly repairs. Such damage is painful and avoidable by disengaging lockers when towing under load on steep grades.
3. Using Lockers on Smooth, High Traction Surfaces
Lockers should not be used on high-traction surfaces such as pavement or flat, smooth trails. Because lockers force wheels on the same axle to rotate at identical speeds, turning causes driveline binding and tire scrubbing. This binding rapidly wears tires and drivetrain components, eventually leading to failure.
4. When All Wheels Maintain Contact Without Wheel Lift
Modern 4WDs often have limited suspension flex, reducing wheel lift. In these cases, if all wheels maintain ground contact, locking differentials needlessly stresses the driveline as there is no loss of traction to overcome. Use lockers only when wheels are likely to lift or slip, not as a constant setting.
5. During Tight Turns or Curves
Engaging front lockers on bends or switchbacks impairs steering by forcing both front wheels to spin equally, restricting your ability to turn. This limitation can cause the vehicle to get stuck or damage steering components. Front lockers should be disengaged on any section of road or trail requiring tight steering input.
6. Descending Steep Hills
When descending steep slopes, engage 4-Low and the rear locker to maintain control and a straight line. However, never use the front locker downhill—it increases front axle stress due to gravity, reduces steering responsiveness, and risks driveline damage. Using the front locker downhill can cause loss of control and mechanical failure.
7. On Loose Side Slopes
Using lockers on side slopes with loose surfaces (sand, shale, gravel) is dangerous. Lockers force both wheels to spin at the same speed, removing the natural difference needed to maintain grip and balance. This causes the vehicle to slide sideways downhill—a hazardous situation especially on narrow ridgelines or steep embankments.
8. When Steering is Fully Locked
Using front lockers while steering is at full lock places tremendous stress on CV joints and axles. The twisting forces caused by binding differentials combined with sharp steering angles cause premature failure of drivetrain components. Always straighten wheels slightly before engaging the front locker and disengage before tight turns.
Additional Notes on Proper Use
- Most factory lockers only engage in 4-Low. Aftermarket units might allow engagement in higher ranges, but this is not recommended due to shock loads on the driveline.
- Lockers are designed for slow, controlled crawling over difficult terrain—not high-speed or momentum-based driving. Using lockers aggressively at speed can cause serious damage.
- Use the rear locker primarily and engage the front locker only when necessary, then disengage promptly to maintain steering control and prevent damage.
Conclusion
Differential lockers are powerful tools that dramatically increase traction and vehicle capability when used correctly. However, misuse in any of the above situations can lead to expensive repairs or even getting stranded. Understand your terrain, vehicle capabilities, and the specific use cases to engage lockers only when needed and drive deliberately.
